So, , hier isse nu, die Ixmess-BETA:
Download:
http://ctrlr.org/?ddownload=88221
Installieren + Setup CTRLR + EDITOR + Midi-Connect s. VR09-Editor Manual:
https://drive.google.com/drive/folders/1uGuVOTOpudkNxrDMgu8eFfpbYaxVbbp6
EDITOR Merkmale:
====================================================
# Applikation (Windows XP - 10, OSX, Linux) fuer die Steuerung der VR700
# Uebersichtlicher Zugang zu allen VR700 Parametern und Sounds statt grausames Menu-Diving auf dem WDOAT (worst display of all times)
# Mehr Parameter/Effekte als ueber VR700 Board
# eigene EDITOR Registration (unabhaengig von VR Favorites):
- 256 Baenke mit je 8 Patches => 2048 Registrationen
- Speichert mehr Effekte als die Favorites, z.B. die ADR-Huellkurve u. Filter, erweiterte Rhythmus Settings, Vibrato usw
- prosaische Registration Namen (statt nur Nummern... )
# eigenes SOUND (INSTRUMENT) Register
schnelles 'Workflow" Register zum Speichern einzelner Ensemble-Sounds (z.B eigenmodifizierte Pianos, Streicher)
Die 'Single sounds' koennen frei in Ensemble 1 oder 2 geladen und mit den FAVORITES und EDITOR Registrations gespeichert werden
# SYNTH-MODE":versetzt die VR in eine 'synthesizer simulation configuration' wo die Zugriegel + OVERDRIVE und REVERB Regler als ADR-Huelle und Filter-Fader agieren
# Hammond Style Orgel mit doppeltem Zugriegelsatz und Registern
#erweiterte EFFECT Parameter: erlaubt erweitertes Modifizieren des jedem Sound zugeordneten EFFECTs
Bsp: low/high-pass und Resonance Filter, Tremolo Frequenz, Stereo Effekte, Delays,usw
# EUQUALIZER: erweiterter EQ
# UPG-Datei Editor : kann z.Z nur zum Umordnen der Favorite-UPG-Dateien (VR FAVORITE backup file) verwendet werden
so, weiter in Englisch:
Beginner steps (howto)
====================================================
!!
!! WARNING: this a not fully tested BETA preview/sneak release. Do not use for production yet !
!!
** after setup and midi-connect check if the EDITOR reacts to buttons pressed on the VR700 and vice versa.
** top Panel "voice-selectors"
=> use the PED(al)/LOW/UPP buttons to switch voices on/off for organ, ensemble 1 and ensemble 2.
=> use the SEL-buttons to mark an ensemble voice as 'active', e.g. every effect you change on the EDITOR (like vibrato, porta, piano-sustain,
envelope, filter etc...) and every sound you load from SOUNDEXPLORER applies to this selected voice!
=> use SPLIT and LAYER -buttons as on the VR (note: unfortunately, the split and layer buttons of the VR cannot be synched back to the EDITOR)
** top Panel "SYNTH-MODE"
when switched on the VR is put into a special 'synthesizer simulation configuration':
- mutes the organ and disables the drawbars on organ (trick is 'keyboard split'+ splitpoint to the lowest note + 'layer off')
- the drawbars 16- 2 2/3 act as coarse faders for the SYNTH filters and ADR envelope (see SYNTH tab green indications)
- upper drawbar faders act on ensemble 1, lower dbars on ensemble 2 (switch with the UPPER / LOWER Harmonic Bar buttons on the VR)
- the ROTARY SOUND and REVERB potentiometers act as fine faders for a filter or envelope (filter/envelope selector buttons for each poti)
- works with ENSEMBLE 1 and/or ENSEMBLE 2

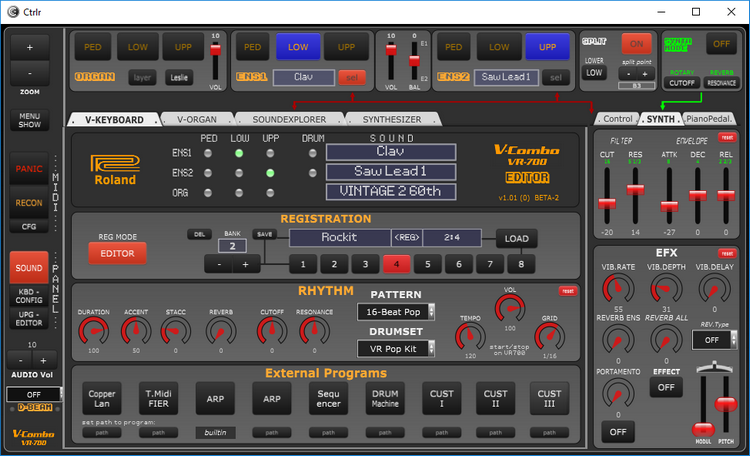

** Panel "V-KEYBOARD" => REGISTRATION:
the registration panel allows controlling of the VR700 favorites and the proprietary EDITOR registation
=> The FAVORITE registration: set mode button to FAVORITE:
To load an FAVORITE from the VR700, use the BANK and patch-buttons 1-8 to dial it's number then press LOAD
If you select a FAVORITE button on the VR this will also synchronize to the EDITOR.
To save and delete a FAVORITE, use the VR700
=> The EDITOR registration: set mode button to EDITOR:
To save an EDITOR registration, use the BANK and patch-buttons 1-8 to find a 'free' registration, enter a new name in the registration name LCD, then
press SAVE (starts flashing), then press the target patch-button (flashes 2 x if successfull)
To load an EDITOR registration, use the BANK and patch-buttons 1-8 to find the desired registration, then press LOAD
To delete an EDITOR registration, use the BANK and patch-buttons 1-8 to find the desired registration, then press DEL

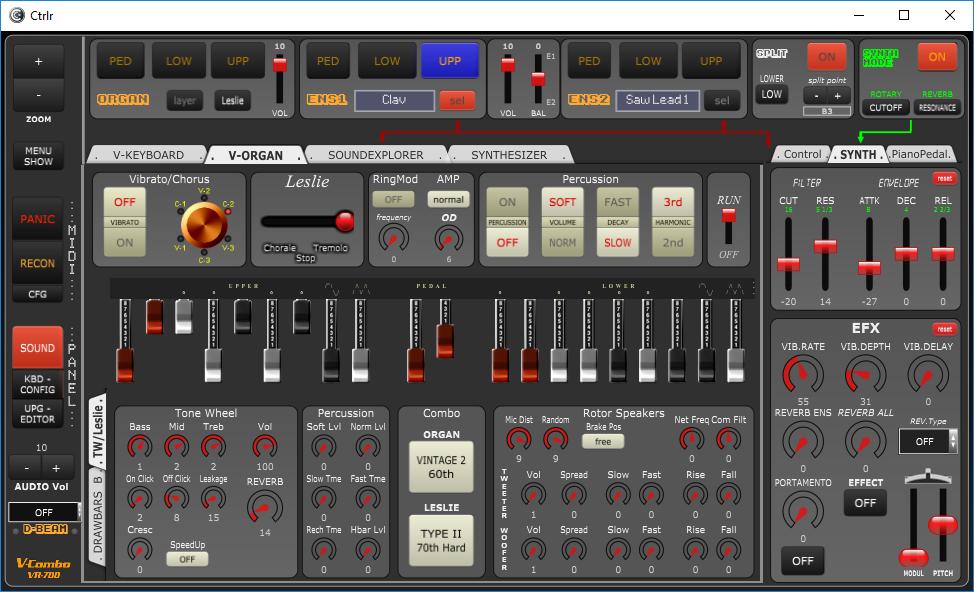

** Panel "V-ORGAN" =>
=> most elements are self explanatory
=> switch between drawbarset B and Tonewheel/Leslie parametrisation
=> Organ - registers (R1-R5): Hammond-style drawbar registrations
To save, select the A or B dbar-set you want to save, press SAVE (starts flashing) for upper or lower, then press a button from R1-R5
To load, press a button from R1-R5 (upper or lower).
To switch back from an registration to A or B set, press A or B (for upper and/or lower)

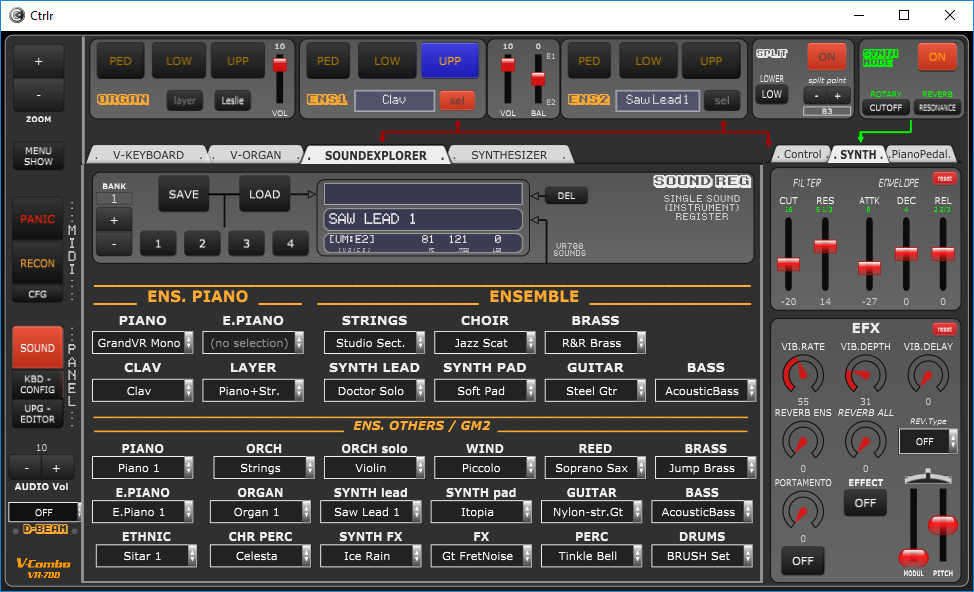

** Panel "SOUNDEXPLORER":
=> use the sound-selectors to load a sound to the VR700 (load to the SELected ensemble voice)
** Panel "SOUNDEXPLORER" => INSTRUMENT REGISTER
=> The INSTRUMENT register is a fast 'working' register to save single sounds (e.g. your modified pianos, enhanced strings etc)
The single sounds can later be loaded to both ensemble 1 and 2 and also saved with favorites and EDITOR registrations.
To save an INSTRUMENT registration, use the BANK and patch-buttons 1-4 to find a 'free' register, enter a new name in the register name LCD, then
press SAVE (starts flashing), then press the target patch-buttons (flashes 2 x if successfull)
To load an INSTRUMENT registration, use the BANK and patch-buttons 1-4 to find the desired register, then press LOAD
To delete an INSTRUMENT registration, use the BANK and patch-buttons 1-4 to find the desired register, then press DEL

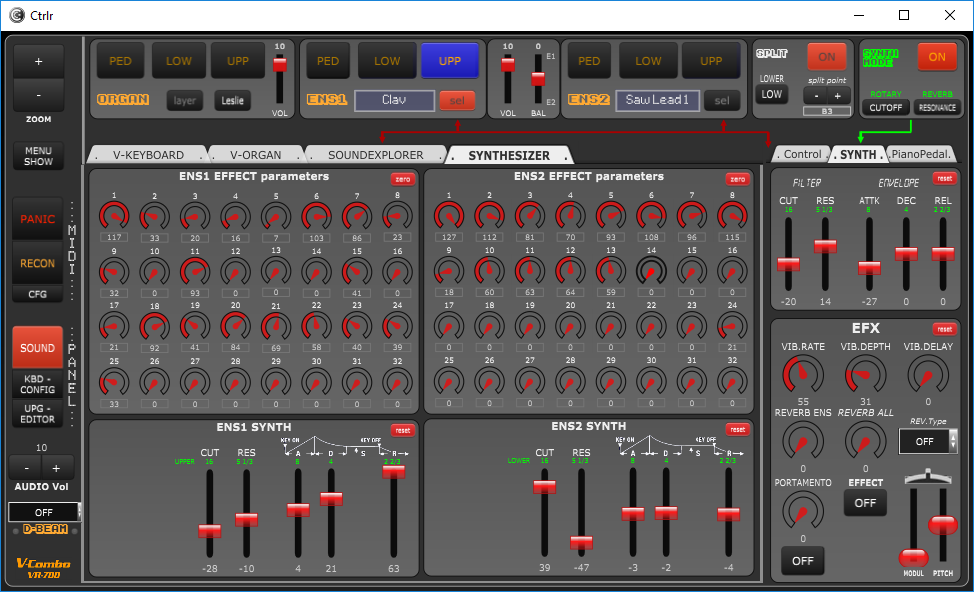

** Panel SYNTHESIZER:EFFECT parameters
Onthe VR700, the EFFECT knob only varies one (fixed) parameter of the EFFECT attributed to a sound
The Effect - panel of the EDITOR gives access to (in theory) up to 32 parameters for each effect.
Practically each effect has between 1 and 10 parameters. Unfortunately these parameters are neither systematic nor categorized
so you have to play around to learn what each of the 32 knobs does to the effect.
** Panel SYNTHESIZER: filters and envelope:
=> indentical to the SYNTH faders on the right section of the EDITOR
=> you can modify both ensemble 1 and 2 without switching the SEL-button
** EUQUALIZER: switch to KBD-Config":
=> The EQ of the Editor has much more optons than the VR keyboard
Download:
http://ctrlr.org/?ddownload=88221
Installieren + Setup CTRLR + EDITOR + Midi-Connect s. VR09-Editor Manual:
https://drive.google.com/drive/folders/1uGuVOTOpudkNxrDMgu8eFfpbYaxVbbp6
EDITOR Merkmale:
====================================================
# Applikation (Windows XP - 10, OSX, Linux) fuer die Steuerung der VR700
# Uebersichtlicher Zugang zu allen VR700 Parametern und Sounds statt grausames Menu-Diving auf dem WDOAT (worst display of all times)
# Mehr Parameter/Effekte als ueber VR700 Board
# eigene EDITOR Registration (unabhaengig von VR Favorites):
- 256 Baenke mit je 8 Patches => 2048 Registrationen
- Speichert mehr Effekte als die Favorites, z.B. die ADR-Huellkurve u. Filter, erweiterte Rhythmus Settings, Vibrato usw
- prosaische Registration Namen (statt nur Nummern... )
# eigenes SOUND (INSTRUMENT) Register
schnelles 'Workflow" Register zum Speichern einzelner Ensemble-Sounds (z.B eigenmodifizierte Pianos, Streicher)
Die 'Single sounds' koennen frei in Ensemble 1 oder 2 geladen und mit den FAVORITES und EDITOR Registrations gespeichert werden
# SYNTH-MODE":versetzt die VR in eine 'synthesizer simulation configuration' wo die Zugriegel + OVERDRIVE und REVERB Regler als ADR-Huelle und Filter-Fader agieren
# Hammond Style Orgel mit doppeltem Zugriegelsatz und Registern
#erweiterte EFFECT Parameter: erlaubt erweitertes Modifizieren des jedem Sound zugeordneten EFFECTs
Bsp: low/high-pass und Resonance Filter, Tremolo Frequenz, Stereo Effekte, Delays,usw
# EUQUALIZER: erweiterter EQ
# UPG-Datei Editor : kann z.Z nur zum Umordnen der Favorite-UPG-Dateien (VR FAVORITE backup file) verwendet werden
so, weiter in Englisch:
Beginner steps (howto)
====================================================
!!
!! WARNING: this a not fully tested BETA preview/sneak release. Do not use for production yet !
!!
** after setup and midi-connect check if the EDITOR reacts to buttons pressed on the VR700 and vice versa.
** top Panel "voice-selectors"
=> use the PED(al)/LOW/UPP buttons to switch voices on/off for organ, ensemble 1 and ensemble 2.
=> use the SEL-buttons to mark an ensemble voice as 'active', e.g. every effect you change on the EDITOR (like vibrato, porta, piano-sustain,
envelope, filter etc...) and every sound you load from SOUNDEXPLORER applies to this selected voice!
=> use SPLIT and LAYER -buttons as on the VR (note: unfortunately, the split and layer buttons of the VR cannot be synched back to the EDITOR)
** top Panel "SYNTH-MODE"
when switched on the VR is put into a special 'synthesizer simulation configuration':
- mutes the organ and disables the drawbars on organ (trick is 'keyboard split'+ splitpoint to the lowest note + 'layer off')
- the drawbars 16- 2 2/3 act as coarse faders for the SYNTH filters and ADR envelope (see SYNTH tab green indications)
- upper drawbar faders act on ensemble 1, lower dbars on ensemble 2 (switch with the UPPER / LOWER Harmonic Bar buttons on the VR)
- the ROTARY SOUND and REVERB potentiometers act as fine faders for a filter or envelope (filter/envelope selector buttons for each poti)
- works with ENSEMBLE 1 and/or ENSEMBLE 2
** Panel "V-KEYBOARD" => REGISTRATION:
the registration panel allows controlling of the VR700 favorites and the proprietary EDITOR registation
=> The FAVORITE registration: set mode button to FAVORITE:
To load an FAVORITE from the VR700, use the BANK and patch-buttons 1-8 to dial it's number then press LOAD
If you select a FAVORITE button on the VR this will also synchronize to the EDITOR.
To save and delete a FAVORITE, use the VR700
=> The EDITOR registration: set mode button to EDITOR:
To save an EDITOR registration, use the BANK and patch-buttons 1-8 to find a 'free' registration, enter a new name in the registration name LCD, then
press SAVE (starts flashing), then press the target patch-button (flashes 2 x if successfull)
To load an EDITOR registration, use the BANK and patch-buttons 1-8 to find the desired registration, then press LOAD
To delete an EDITOR registration, use the BANK and patch-buttons 1-8 to find the desired registration, then press DEL
** Panel "V-ORGAN" =>
=> most elements are self explanatory
=> switch between drawbarset B and Tonewheel/Leslie parametrisation
=> Organ - registers (R1-R5): Hammond-style drawbar registrations
To save, select the A or B dbar-set you want to save, press SAVE (starts flashing) for upper or lower, then press a button from R1-R5
To load, press a button from R1-R5 (upper or lower).
To switch back from an registration to A or B set, press A or B (for upper and/or lower)
** Panel "SOUNDEXPLORER":
=> use the sound-selectors to load a sound to the VR700 (load to the SELected ensemble voice)
** Panel "SOUNDEXPLORER" => INSTRUMENT REGISTER
=> The INSTRUMENT register is a fast 'working' register to save single sounds (e.g. your modified pianos, enhanced strings etc)
The single sounds can later be loaded to both ensemble 1 and 2 and also saved with favorites and EDITOR registrations.
To save an INSTRUMENT registration, use the BANK and patch-buttons 1-4 to find a 'free' register, enter a new name in the register name LCD, then
press SAVE (starts flashing), then press the target patch-buttons (flashes 2 x if successfull)
To load an INSTRUMENT registration, use the BANK and patch-buttons 1-4 to find the desired register, then press LOAD
To delete an INSTRUMENT registration, use the BANK and patch-buttons 1-4 to find the desired register, then press DEL
** Panel SYNTHESIZER:EFFECT parameters
Onthe VR700, the EFFECT knob only varies one (fixed) parameter of the EFFECT attributed to a sound
The Effect - panel of the EDITOR gives access to (in theory) up to 32 parameters for each effect.
Practically each effect has between 1 and 10 parameters. Unfortunately these parameters are neither systematic nor categorized
so you have to play around to learn what each of the 32 knobs does to the effect.
** Panel SYNTHESIZER: filters and envelope:
=> indentical to the SYNTH faders on the right section of the EDITOR
=> you can modify both ensemble 1 and 2 without switching the SEL-button
** EUQUALIZER: switch to KBD-Config":
=> The EQ of the Editor has much more optons than the VR keyboard
